LM Series Sorting Equipment

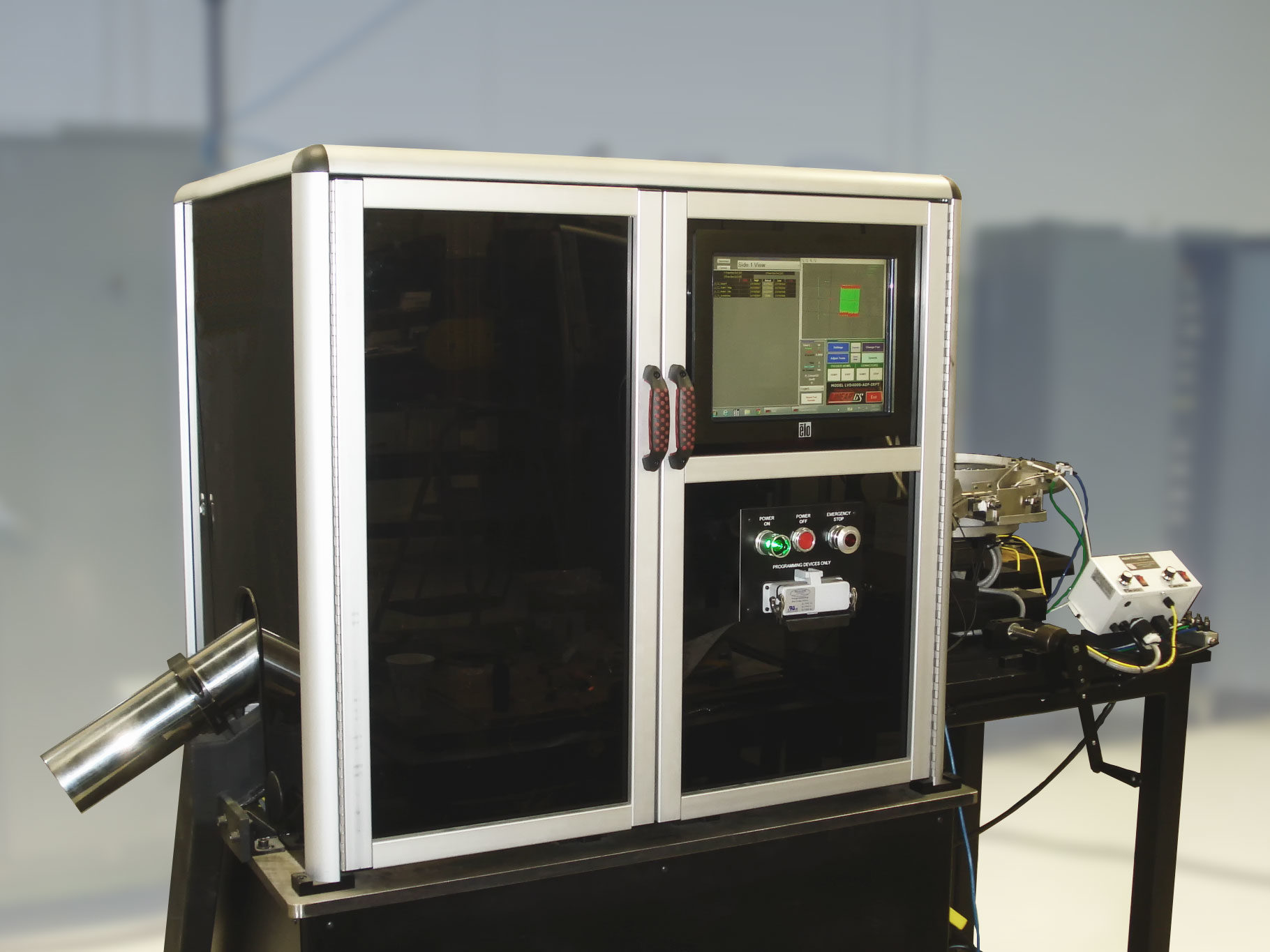

LM (Linear Vision): Mini split belt conveyor inspection machine US/CE Compliant.

1000 thru 4000: Standard, Non-Telecentric lens, 4 camera limit. Camera quantity (1000 = 1 Camera)

  • Description

    Product Description

    Product Type: Ferrous and Non-Ferrous base headed fasteners. Sizes M1 to M4 x 15mm in length. Production Rate: 600 to1200ppm, based on M2-.4 x 10mm long fastener. Vision Field of View (FOV): 20mm Horizontal x 20mm Vertical

    Inspection Machine Capabilities

    Camera 1:

    Top down view with adjustable front lighting (20mm FOV), Resolution >.0005″

    Perimeter and open burst cracks, open cracks visible at OD, in silhouette view of part, part standing on head viewed down • Diameter; min/max/avg • Ovality/Roundness of head OD • Hex(no flange) min/max diameter

    Camera 2:

    Side view with backlight (20mm x 20mm FOV), Resolution >.0005″

    Length • Head Height • Shank Length • Shoulder Diameter, min/max/avg/angle and variance • Point (Pilot) attributes

    Threads: Major diameter • Major Variance • Minor diameter • Maximum • Average • Thread Match • % Pattern detection of filled or missing threads

    Camera 3 @ 90°:

    Side view with backlight (20mm x 20mm FOV), Resolution .0014″

    Turned Head; Side view comparison and average of hex head width • Bolt straightness, features of bolt can affect reading

    Inspection Machine Add-ons

    Linear GS LVD Series
    Custom Inspection Options: Includes precision down track, heavy duty adjustable base on all systems
    • Additional measurement detection

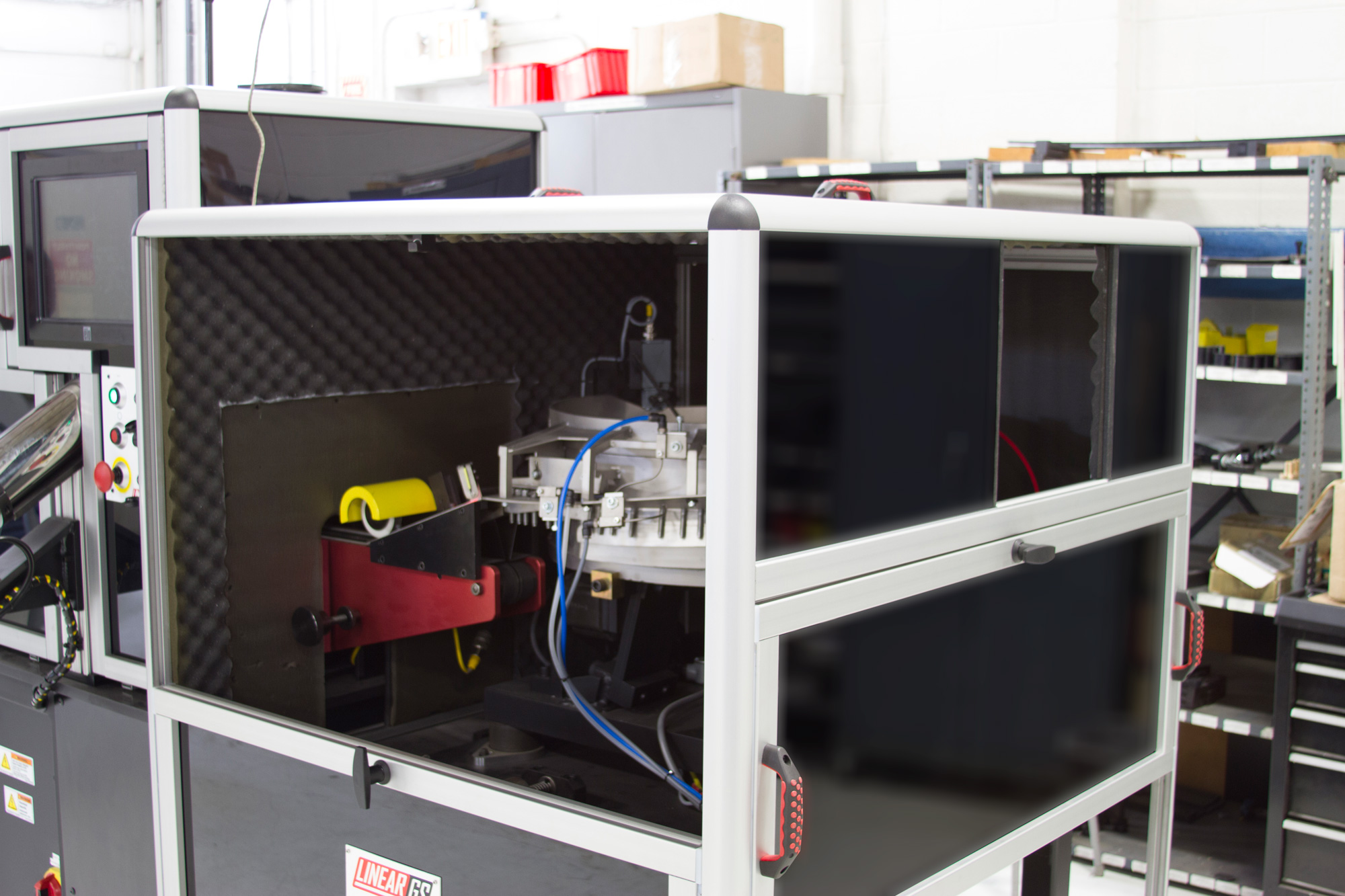

    Linear GS feeder bowl sound enclosure
    Feed System Options: Includes precision down track, heavy duty adjustable base on all systems
    • 10″ Drive, Vibratory stainless steel tooled bowl for .8mm to 2mm diameter fasteners
    • 12″ Drive, Vibratory stainless steel tooled bowl for 2mm to 4mm diameter fasteners
    • Custom sound enclosure available with easy access for feed system tooling change over
    LinearGS Large Hopper
    Bulk Material Handling Options: Includes heavy duty internally lined hoppers
    • 1ftᵌ or 3 ftᵌ Hopper mounted to bowl table for smaller size fasteners
    • 10 ftᵌ and 12ftᵌ Hopper, Floor style loader with lift-up conveyor and variable speed motor for smaller to medium size fasteners
    • 19ftᵌ Hopper, High Flow, Tub dump style loader for medium to large size fasteners
    • Dust collection units available for inspection machine and material handling components
    Packaging for Inspected product: Includes Boxing and Top Sealing Options
    • 1/4 Keg box, 5 unit packaging system with storage conveyor
    • 1/4 Keg box, 10 unit packaging system with storage conveyor
    • 1/4 keg box, Automatic top fold and tape sealer
    Custom Optics: Telecentric Lens / Lighting and High Resolution Camera Options
    • Cameras, 1 to 25 mega pixel
    • Precision telecentric lens with custom FOV available for enhanced accuracy
