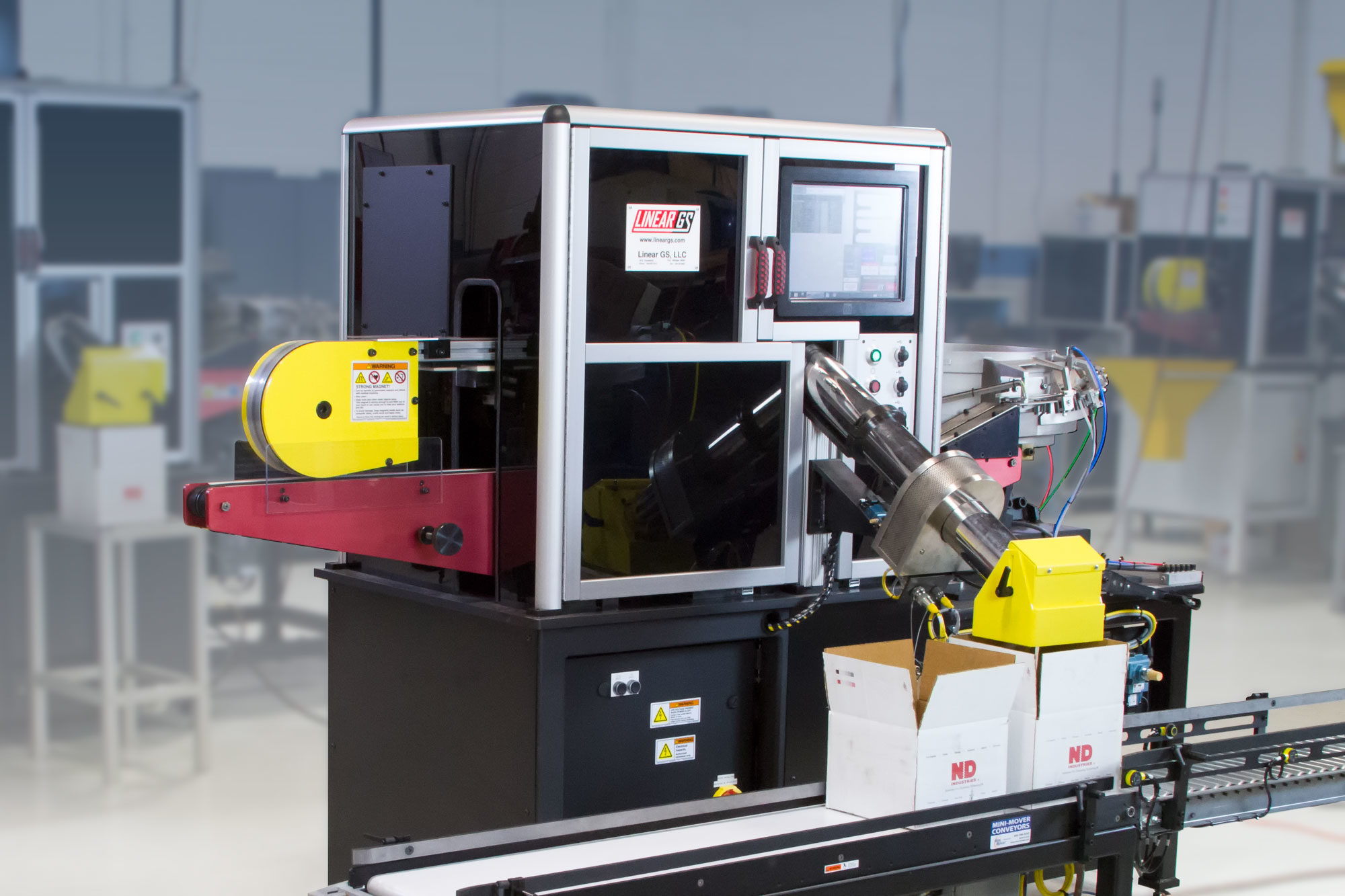

LVD Series Sorting Equipment

LVD (Linear Vision): Dual belt conveyor inspection machine US/CE Compliant.

3000 and 5000: Standard, Non-Telecentric lens, 5 camera limit, Camera quantity (3000 = 3 Camera)

  • Description

    Product Description

    Product Type: Ferrous and Non-Ferrous base fasteners; Nuts, Weldnuts, Rivnuts, Washers, Clips, Non-Collared Studs and Headed bolts M5 to M16 x 90mm in length depending on part stability. Production Rate: 500 to 1000ppm, based on M8-1.25 x 25mm long fastener Vision Field of View (FOV): 32mm Horizontal x 95mm Vertical

    Inspection Machine Capabilities:

    LC (Lower Conveyor)

    LC-Camera 1:

    Top down view with adjustable front lighting (32mm FOV), Resolution .00062″

    Drive Recess (Fill/Missing area) • Surface Defects • Riverbed Cracks

    Inspection Machine Capabilities:

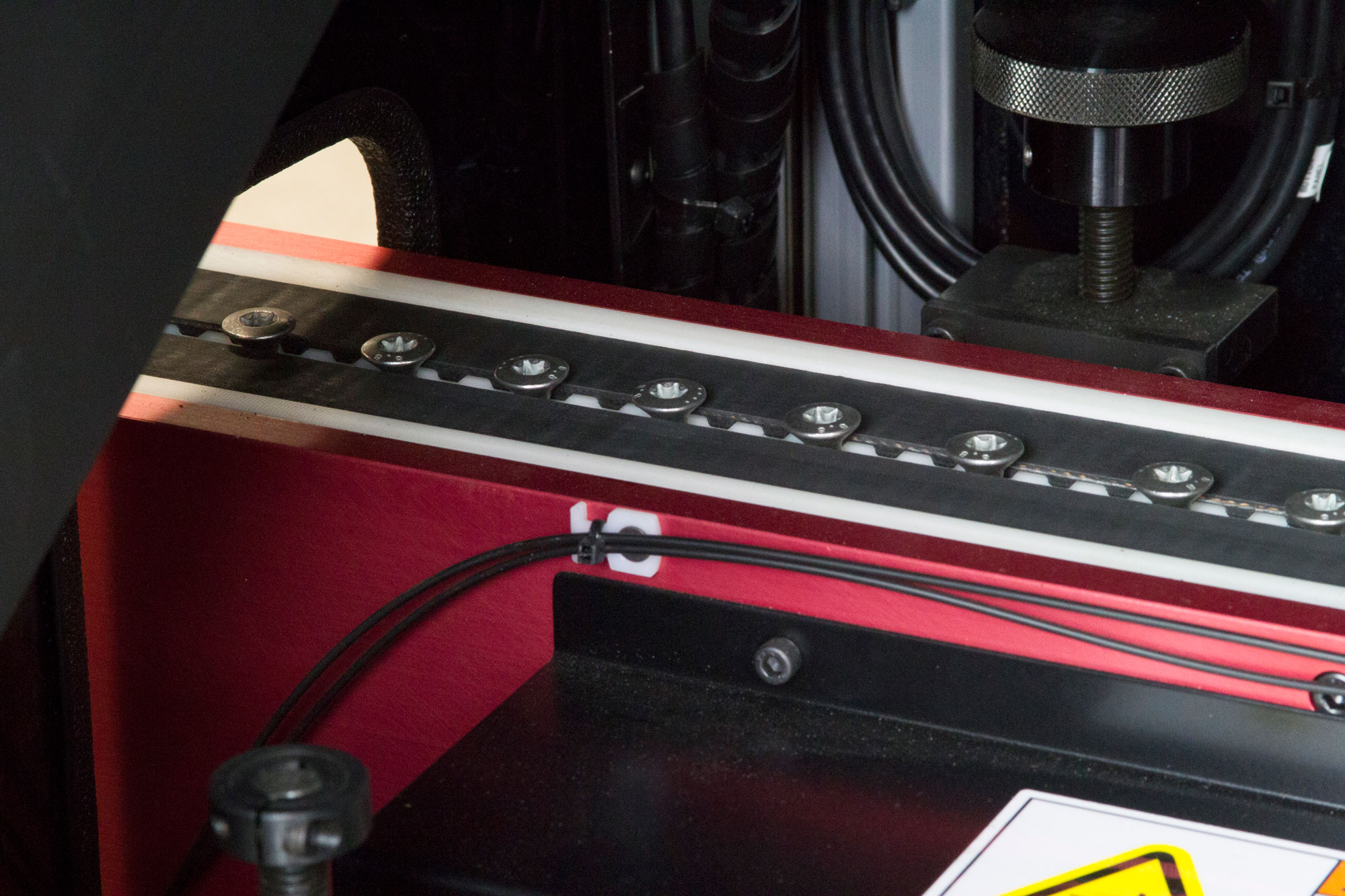

    UC (Upper Conveyor)

    UC-Camera 2:

    Side view with backlight (32mm x 95mm FOV), Resolution .0014″

    Length • Head Height • Shank Length • Shoulder Diameter, min/max/avg/angle and variance • Point (Pilot) attributes

    Threads: Major diameter • Major Variance • Minor diameter • Maximum • Average • Thread Match • % Pattern detection of filled or missing threads

    UC-Camera 3 @ 90°:

    Side view with backlight (32mm x 95mm FOV), Resolution .0014″

    Turned Head; Side view comparison and average of hex head width • Bolt straightness, features of bolt can affect reading

    UC-Camera 4:

    Top down view with adjustable front lighting and adjustable iris back lighting (32mm FOV), Resolution .00062″

    Perimeter and open burst cracks, open cracks visible at OD, in silhouette view of part, part standing on head viewed down • Diameter; min/max/avg • Ovality/Roundness of head OD • Hex(no flange) min/max diameter • Bearing surface defects • Burrs • Weld Nibs

    UC-Camera 5 @ 30°:

    Top angle view with front light (20mm FOV). Resolution >.0005

    Threads; Presence

    Inspection Machine Add-ons

    Linear GS LVD Series
    Custom Inspection Options; Includes additional camera configurations

    360° surface detection

    Linear GS feeder bowl sound enclosure

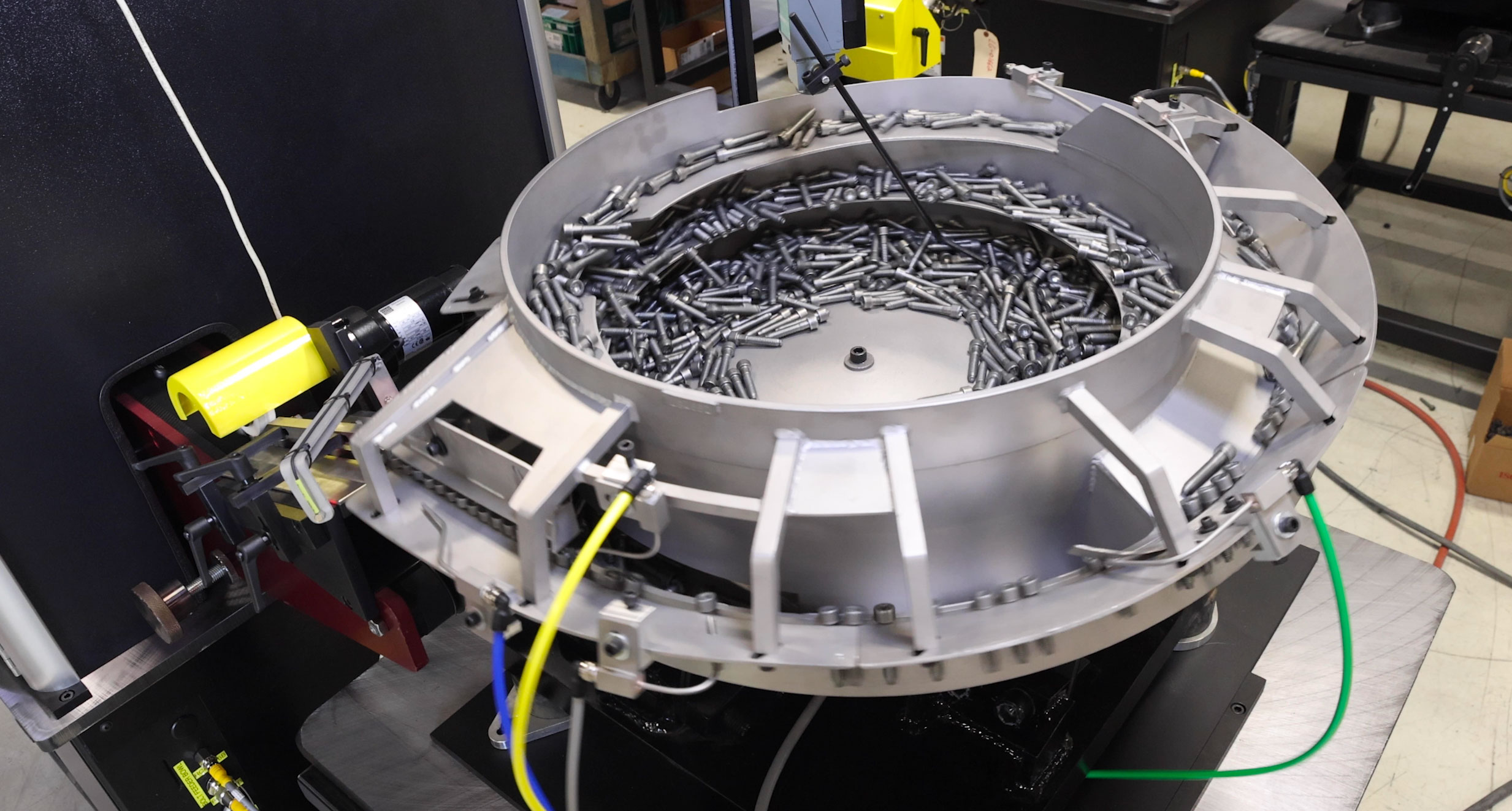

    Bolt Feed System Options: Includes heavy duty adjustable base on all systems

    21″ Drive, Vibratory stainless steel tooled bowl for smaller size bolt fasteners

    24″ Drive, Vibratory stainless steel tooled bowl for medium size bolt fasteners

    30″ Drive, Vibratory stainless steel tooled bowl for large size bolt fasteners

    Nut Feed System Options: Includes heavy duty adjustable base on all systems

    21″ Drive, Vibratory stainless steel tooled bowl for smaller size nut fasteners

    24″ Drive, Vibratory stainless steel tooled bowl for medium size nut fasteners

    Custom sound enclosure available with easy access for feed system tooling change over

    Custom sound enclosure available with easy access for feed system tooling change over

    LinearGS Large Hopper
    Bulk Material Handling Options: Includes heavy duty internally lined hoppers

    3ftᵌ Hopper mounted to bowl table for smaller size fasteners

    10 ftᵌ and 12ftᵌ Hopper, Floor style loader with lift-up conveyor and variable speed motor for smaller to medium size fasteners

    19ftᵌ Hopper, High Flow, Tub dump style loader for medium to large size fasteners

    Dust collection units available for inspection machine and material handling components

    Packaging for Inspected product: Includes Boxing and Top Sealing Options

    1/4 Keg box, 5 unit packaging system with storage conveyor

    1/4 Keg box, 10 unit packaging system with storage conveyor

    1/4 keg box, Automatic top fold and tape sealer

    Custom Optics: Telecentric Lens / Lighting and High Resolution Camera Options

    Cameras, 1 to 25 mega pixel

    Precision telecentric lens with custom FOV available for enhanced accuracy
